Specialized Weld Neck Flanges Manufacturer, ASME B16.47 / ANSI B16.5 Weld Neck Flange Dimensions, WN Flange, WNFF Flange, WNRF Flange.

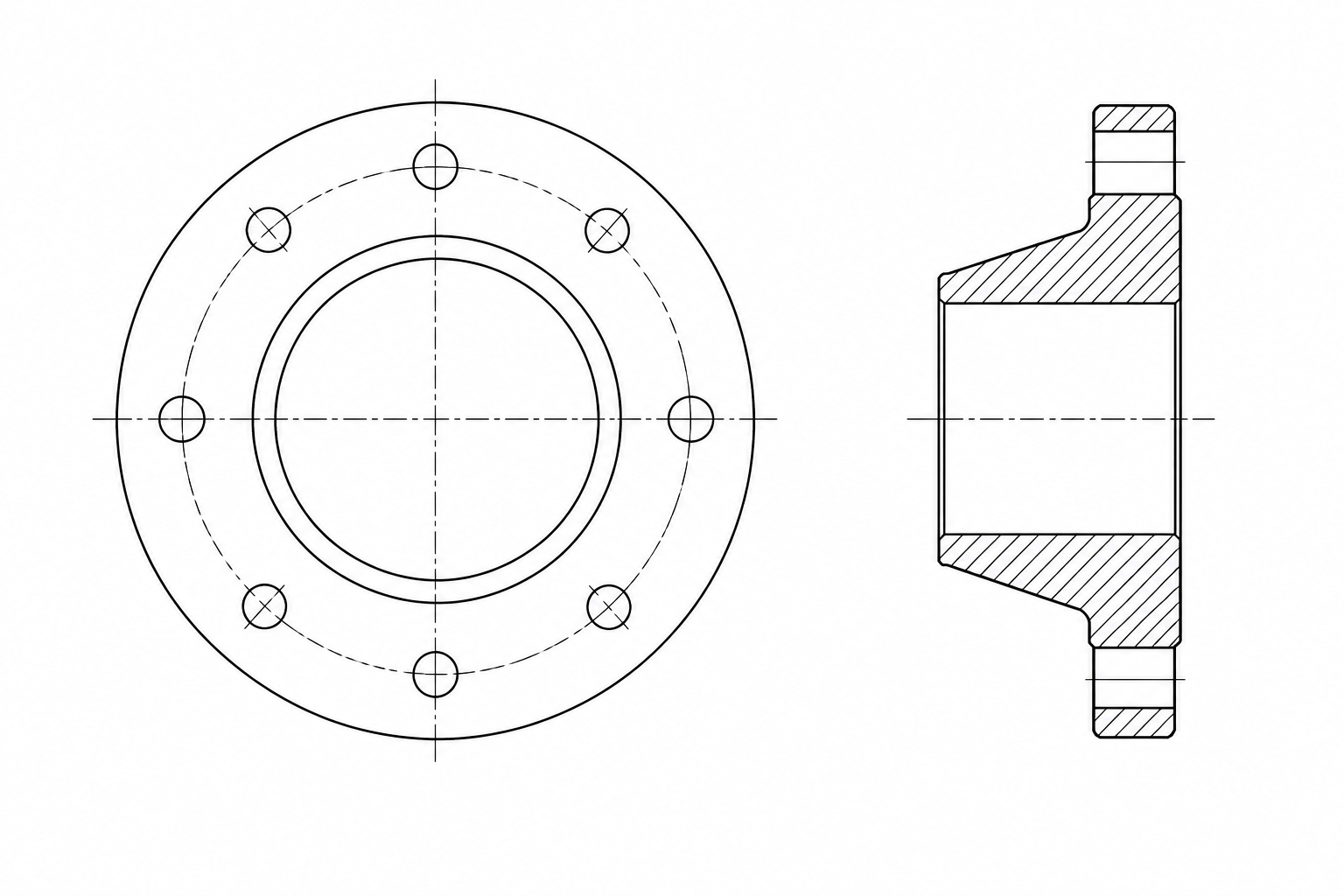

A weld neck flange, one of the most common types of flanges, features a long inching hub that can be welded with a pipe. This flange type is used, typically, in high-pressure and high/ low temperatures applications that want an unrestricted inflow of the fluid conveyed by the pipeline. The absence of pressure drops prevents negative things like turbulence and corrosion/ erosion of the raw material in the proximity of the flange joints. The tapered base allows a smooth distribution of the mechanical stress between the pipe and the weld neck flange and facilitates the prosecution of radiographic examinations to detect possible leakages and welding scars.

Weld Neck Flange Catalogue

The dimension of the Industrial Flange (schedule & NPS) shall match the dimensions of the connecting pipes. Thus, when ordering Steel welding neck flanges, the Customers shall inform the suppliers about the nominal sizes and wall density of the connecting pipes. A Industrial welding neck flanges are connected to a pipe by a single full penetration V-shaped butt weld.

We are the largest exporters of high-quality ANSI B16.5 Weld Neck Flange in Dimensions Class 150 lbs, 300 lbs, 600 lbs, 900 lbs, 1500 lbs, 2500 lbs, ASTM A105 Weld Neck Flange, API 6A Weld Neck Flange, Series A and Series B Weld Neck Flange, B16.47 Weld Neck Flange, BS4504 Weld Neck Flange, Table D and Table E Weld Neck Flange, EN 1092-1 Type 11 Weld Neck Flange, Weld Neck Flange Flat Face (WNFF), Weld Neck Flange Raised Face (WNRF), Weld Neck Flange RTJ, JIS Weld Neck Flange, Weld Neck Flange in PN16, PN10, PN 25, PN 40, Din 2633 Weld Neck Flange, Weld Neck Flange Schedule 40 and Schedule 80 in the USA, UK, Qatar, Mexico, Nigeria, Saudi Arabia, Kuwait, Iran, Kazakhstan, Bahrain, Vietnam, Indonesia, Norway, Ghana, Colombia, Azerbaijan, Libya.

We are ISO Certified Manufacturer and Stockist of Weld Neck Flanges in Stainless Steel, Carbon Steel, Mild Steel, Alloy Steel, Duplex Steel, Super Duplex Steel, Hastelloy, Monel, Copper Nickel, Inconel, Incoloy, Nickel Alloy, Alloy 20, 254 Smo, Titaniun, Bronze, Aluminium, Brass at Reasonable Price.

We are Leading Exporter and Supplier of ASME/ANSI B16.5, ASME/ANSI B16.47 Weld Neck Flanges, Series A & B Weld Neck Flange, Class 150 Weld Neck Raised Face Flange, Flat Faced Weld Neck Flange, Weld Neck Plate Flange, MSS SP-44 Weld Neck Flange, Weld Neck Forged Flange, DIN86029 PN10 Weld Neck Flange, Class 300, 600, 900, 1500 Weld Neck Flange.

Weld Neck Flange Standard Specifications

Product Name	Weld Neck Flanges \| WN Flange \| WNFF Flange \| WNRF Flange
Size Range	1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure Rating	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Standards / Dimensions	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605
Flange Face Types / Connection Type	Flat Face Flange (FF), Raised Face Flange (RF), Ring Joint Flange (RTJ), Lap Joint Flange, Male and Female Flange (M&F), Large and Small Tongue-and-Groove Flange (T&G)
Dimensions	ANSI B16.5, ANSI B16.47 Series A & B, ASA, API-605, MSS SP44, AWWA, Custom Drawings
Custom Design	As per your drawing \| AS, BS, ANSI, DIN, JIS \| Equal and Reducing Configurations
Material Test Certificates (MTC)	As per EN 10204 3.2 and EN 10204 3.1, Test Certificates certifying NACE MR0175, NACE MR0103
Test Certificates	100% Radiography Test Report, EN 10204/3.1B, Raw Materials Certificate, Third Party Inspection Report, etc
Tests	Hydrostatic testing machine, Direct-reading Spectrograph, UI trasonic flaw detector, X-ray detector, Magnetic particle detector
Equipment / Machines	Press machine, Pushing Machine, Bending machine, Sand-blasting machine, electric bevelling machine, etc.
Coating	Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Origin	Indian / USA / Japan / West Europe / Korean
Applications/Usage	Offshore, Oil Field, Shipbuilding, Water System, Natural Gas, Pipe Projects, Electric Power, etc.
Top Export Network	USA, UK, Qatar, Mexico, Nigeria, Saudi Arabia, Kuwait, Iran, Kazakhstan, Bahrain, Vietnam, Indonesia, Norway, Ghana, Colombia, Azerbaijan, Libya.

Weld Neck Flange Material Grades

Stainless Steel Weld Neck Flange	ASTM/ASME A/SA182:- F304, F304L, F316, F316L, ASTM/ASME A/SA351:- CF3, CF3M, CF8, CF8M, DIN 1.4306, DIN 1.4301, DIN 1.4404, DIN 1.4401, DIN 1.4408, DIN 1.4308, DIN 1.4306, DIN 1.4409
Duplex Weld Neck Flange	S31803 / S32205 A182:- Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Weld Neck Flange	S32750 / S32760 A182:- Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Copper Nickel Weld Neck Flange	ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Titanium Weld Neck Flange	ASTM B381 / ASME SB381:- Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 ASTM R50250/GR.1 \| R50400/GR.2 \| R50550/GR.3 \| R50700/GR.4 \| GR.6 \|R52400/GR.7 \| R53400/GR.12 \| R56320/GR.9 \| R56400/GR.5
Copper Weld Neck Flange	TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Incoloy Weld Neck Flange	ASTM B564 / ASME SB564:- Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925
Inconel Weld Neck Flange	ASTM B564 / ASME SB564:- Inconel 600, 601, 625, 718, 783, 690, x750
Nickel Weld Neck Flange	ASTM B564 / ASME SB564:- Nickel 200, Nickel 201, Nickel 205, Nickel 205LC
Hastelloy Weld Neck Flange	ASTM B564 / ASME SB564:- Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X
Monel Weld Neck Flange	ASTM B564 / ASME SB564:- Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Carbon Steel Weld Neck Flange	ASTM/ASME A/SA105 A/SA105N and A/SA216-WCB, DIN 1.0460, DIN 1.0402, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, CS High Yield ASTM A694 / A694 (F52, F56, F60, F65, F70, F80)
Alloy Steel Weld Neck Flange	ASTM A182 / ASME SA182:- F5, F9, F11, F12, F22, F91
Alloy 20 Weld Neck Flange	ASTM B462 / ASME SB462:- Carpenter® 20 Alloy, Alloy 20Cb-3
254 Smo Weld Neck Flange	ASTM A182 / ASME SA182:- SMO 254/6Mo, UNS S31254, DIN 1.4547
Aluminium Weld Neck Flange	5052 /6061/ 6063 / 2017 / 7075 / etc.
Brass Weld Neck Flange	3602 / 2604 / H59 / H62 / etc.
Other Weld Neck Flange material	Tin bronze, Alumunum bronze, Lead bronze, Nimonic 75, Nimonic 80A, Nimonic 90, AISI 4140, AISI 4130, Mild Steel, Al6XN Flanges

Weld Neck Flange Standards

Weld Neck Flange Schedule Chart

Nom Pipe Size	Outside Diam	Sched 10	Sched 20	Sched 30	Std. Wall	Sched 40	Sched 60	Extra Strong	Sched 80	Sched 100	Sched 120	Sched 140	Sched 160	Double Extra Strong
1/2”	0.840	0.674	–	–	0.622	0.622	–	0.546	0.546	–	–	–	0.464	0.252
3/4”	1.050	0.884	–	–	0.824	0.824	–	0.742	0.742	–	–	–	0.612	0.434
1”	1.315	1.097	–	–	1.049	1.049	–	0.957	0.957	–	–	–	0.815	0.599
1.1/4”	1.660	1.442	–	–	1.380	1.380	–	1.278	1.278	–	–	–	1.160	0.896
1.1/2”	1.900	1.682	–	–	1.610	1.610	–	1.500	1.500	–	–	–	1.338	1.100
2”	2.375	2.157	–	–	2.067	2.067	–	1.939	1.939	–	–	–	1.687	1.503
2.1/2”	2.875	2.635	–	–	2.469	2.469	–	2.323	2.323	–	–	–	2.125	1.771
3”	3.500	3.260	–	–	3.068	3.068	–	2.900	2.900	–	–	–	2.624	2.300
3-1/2”	4.000	3.760	–	–	3.548	3.548	–	3.364	3.364	–	–	–	–	2.728
4”	4.500	4.260	–	–	4.026	4.026	–	3.826	3.826	–	3.624	–	3.438	3.152
5”	5.563	5.295	–	–	5.047	5.047	–	4.813	4.813	–	4.563	–	4.313	4.063
6”	6.625	6.357	–	–	6.065	6.065	–	5.761	5.761	–	5.501	–	5.187	4.897
8”	8.625	8.329	8.125	8.071	7.981	7.981	7.813	7.625	7.625	7.437	7.187	7.001	6.813	6.875
10”	10.750	10.420	10.250	10.136	10.020	10.020	9.750	9.750	9.562	9.312	9.062	8.750	8.500	8.750
12”	12.750	10.420	10.250	12.090	12.000	11.938	11.626	11.750	11.374	11.062	10.750	10.500	10.126	10.750
14”	14.000	13.500	13.376	13.250	13.250	13.124	12.812	13.000	12.500	12.124	11.814	11.500	11.188	–
16”	16.000	15.500	15.376	15.250	15.250	15.000	14.688	15.000	14.312	13.938	13.564	13.124	12.812	–
18”	18.000	17.500	17.376	17.124	17.250	16.876	16.500	17.000	16.124	15.688	15.250	14.876	14.438	–
20”	20.000	19.500	19.250	19.000	19.250	18.812	18.376	19.000	17.938	17.438	17.000	16.500	16.062	–
24”	24.000	23.500	23.250	22.876	23.250	22.624	22.062	23.000	21.562	20.938	20.376	19.876	19.312	–
30”	30.000	29.376	29.000	28.750	29.250	–	–	29.000	–	–	–	–	–	–
36”	36.000	35.376	35.000	34.750	35.250	34.500	–	35.000	–	–	–	–	–	–
42”	42.000	–	–	–	41.250	–	–	41.000	–	–	–	–	–	–

Weld Neck Flange Weight

Nom Pipe Size	150#			300#			600#			900#			1500#			2500#
	WN	S/O	B/K	WN	S/O	B/K	WN	S/O	B/K	WN	S/O	B/K	WN	S/O	B/K	WN	S/O	B/K
1/2”	0.7	0.4	0.5	0.8	0.7	0.8	0.9	0.8	0.8	2.1	1.8	1.9	2.1	1.8	1.9	3.2	3	3
3/4”	0.8	0.7	0.8	1.4	1.2	1.2	1.6	1.4	1.4	2.7	2.4	2.7	2.7	2.4	2.7	3.6	4	4.5
1”	1.1	0.8	0.9	1.7	1.4	1.5	1.9	1.7	1.7	3.9	3.6	3.7	3.9	3.6	3.7	5.4	5	5
1.1/4”	1.5	1.2	1.3	2.2	1.8	2	2.6	2.1	2.4	4.5	4.1	4.3	4.5	4.1	4.3	7.8	8	8
1.1/2”	1.8	1.4	1.6	3.2	2.7	2.9	3.6	3.1	3.4	6.2	5.4	5.9	6.2	5.4	5.9	11.5	11	11
2”	2.7	2.2	2.6	3.6	3.2	3.5	4.7	3.9	4.4	11.3	10.5	11.3	11.3	10.5	11.3	19	17	17
2.1/2”	4.4	3.5	4.1	5.4	4.5	5.3	4.8	5.4	6.8	16.3	15.8	16	16.3	15.8	16	24	25	25
3”	5.2	3.8	5.1	7.3	5.9	7.2	8.7	7.3	8.9	15	12.3	16.8	21	21.5	19.5	42.6	38	39
3-1/2”	6.4	5	6.5	8.9	7.5	9.2	11.6	9	12.7	–	–	–	–	–	–	–	–	–
4”	7.5	5.6	7.5	11.8	10	12.2	18.4	16.5	18.6	24	23.2	24.5	31.8	31	33	64	58	60
5”	9.2	6.5	9.2	16	12.5	16	31	28.5	30.8	38.5	37.5	39.5	59	58.8	60	111	95	101
6”	11.0	8.1	11.8	20.2	16.5	22	37	36.2	38	50	48.3	51.5	72	74	75	171	146	156
8”	18.4	13	20.4	31.2	25.5	36	54.5	51.5	62.2	85	75	89	124	112	125	261	220	242
10”	25.5	18.4	31	44.3	35	55	98.5	76.2	102	123	110	131	207	184	215	485	420	465
12”	37	28.5	47	63.5	52	82.5	105	89.5	132	168	146	187	306	264	316	698	590	665
14”	51	37.5	60	86	73	108	150	102	158	198	172	224	416	–	–	–	–	–
16”	61.5	44.5	61	112	88	139	177	150	225	225	192	259	567	–	–	–	–	–
18”	71.5	54	93	141	115	178	228	180	285	318	272	383	736	–	–	–	–	–
20”	85	72	127	173	139	228	285	231	365	376	330	482	929	–	–	–	–	–
24”	119	95	190	248	212	350	372	330	532	680	632	905	1504	–	–	–	–	–

Weld Neck Flange Dimensional Tolerances

Outside Diameter * Tolerances not listed in ASME B16.5 2013 ≤24 1.6 mm (0.06 in) >24 ±3.2 mm (±0.12 in)

Diameter Hub at Base ≤24 1.6 mm (0.06 in) >24 ±3.2 mm (±0.12 in)

Inside Diameter ≤10 ±0.8 mm (±0.03 in) 12 thru 18 1.6 mm (0.06 in) ≥20 +3.2 mm / -1.6 mm (±0.12 in / -0.06 in)

Diameter Hub at Point of Welding ≤5 +2.4 mm / -0.8 mm (±0.09 in / -0.03 in) ≥6 +4.0 mm / -0.8 mm (+0.15 in / -0.03 in)

Drilling Bolt Circle 1.6 mm (0.06 in) Bolt Hole Spacing ±0.8 mm (±0.03 in)

Eccentricity Bolt Circle ≤2½ 0.8 mm max (0.03 in max) ≥3 1.6 mm max (0.06 in max)

Thickness ≤18 +3.2 mm / -0 (+0.12 in / -0) ≥20 +4.8 mm / -0 (+0.18 in / -0)

Length thru Hub ≤10 1.6 mm (0.06 in) ≥12 ±3.2 mm (±0.12 in)

Diameter Contact Face 1.6 mm RF (0.06 in) ±0.8 mm (±0.03 in) 6.35 mm RF (0.25 in) ±0.4 mm (±0.01 in)Tongue and Groove ±0.4 mm (±0.01 in) Male-Female ±0.4 mm (±0.01 in)

ASME B16.5 Weld Neck Flange Class 150 Dimensions

ANSI/ASME/ASA B16.5 150lb/sq.in. Flange WN-RF

ø	D	b	g	m	a	J*	h	k	Holes	l	Kg.
1/2″	88,9	11,1	34,9	30,2	21,3	15,7	47,6	60,3	4	15,9	0,500
3/4″	98,4	12,7	42,9	38,1	26,7	20,8	52,4	69,8	4	15,9	0,700
1″	107,9	14,3	50,8	49,2	33,5	26,7	55,6	79,4	4	15,9	1,100
1 1/4″	117,5	15,9	63,5	58,8	42,2	35,1	57,1	88,9	4	15,9	1,500
1 1/2″	127,0	17,5	73,0	65,1	48,3	40,9	61,9	98,4	4	15,9	1,800
2″	152,4	19,0	92,1	77,8	60,3	52,6	63,5	120,6	4	19,0	2,700
2 1/2″	177,8	22,2	104,8	90,5	73,1	62,7	69,8	139,7	4	19,0	4,400
3″	190,5	23,8	127,0	107,9	88,9	78,0	69,8	152,4	4	19,0	5,200
3 1/2″	215,9	23,8	139,7	122,2	101,6	90,2	71,4	177,8	8	19,0	6,400
4″	228,6	23,8	157,2	134,9	114,3	102,4	76,2	190,5	8	19,0	7,500
5″	254,0	23,8	185,7	163,5	141,2	128,3	88,9	215,9	8	22,2	9,200
6″	279,4	25,4	215,9	192,1	168,4	154,2	88,9	241,3	8	22,2	11,000
8″	342,9	28,6	269,9	246,1	219,1	202,7	101,6	298,4	8	22,2	18,300
10″	406,4	30,2	323,8	304,8	273,0	254,5	101,6	361,9	12	25,4	25,000
12″	482,6	31,7	381,0	365,1	323,8	304,8	114,3	431,8	12	25,4	39,000
14″	533,4	34,9	412,7	400,0	355,6	336,5	127,0	476,2	12	28,6	51,000
16″	596,9	36,5	469,9	457,2	406,4	387,3	127,0	539,7	16	28,6	60,000
18″	635,0	39,7	533,4	504,8	457,2	438,1	139,7	577,8	16	31,7	71,000
20″	698,5	42,9	584,2	558,8	508,0	488,9	144,5	635,0	20	31,7	88,000
22″	749,3	46,0	641,2	609,6	558,8	539,7	149,2	692,1	20	34,9	102,000
24″	812,8	47,6	692,1	663,6	609,6	590,5	152,4	749,3	20	34,9	119,000
*	The data “J” corresponds to the STD schedule

ASME B16.5 Weld Neck Flange Class 300 Dimensions

ANSI/ASME/ASA B16.5 300lb/sq.in. Flange WN-RF

ø	D	b	g	m	a	J*	h	k	Holes	l	Kg.
1/2″	95,2	14,3	34,9	38,1	21,3	15,7	52,4	66,7	4	15,9	0,900
3/4″	117,5	15,9	42,9	47,6	26,7	20,8	57,1	82,5	4	19,0	1,500
1″	123,8	17,5	50,8	54,0	33,5	26,7	61,9	88,9	4	19,0	1,900
1 1/4″	133,3	19,0	63,5	63,5	42,2	35,1	65,1	98,4	4	19,0	2,600
1 1/2″	155,6	20,6	73,0	69,8	48,3	40,9	68,3	114,3	4	22,2	3,300
2″	165,1	22,2	92,1	84,1	60,3	52,6	69,8	127,0	8	19,0	3,600
2 1/2″	190,5	25,4	104,8	100,0	73,1	62,7	76,2	149,2	8	22,2	5,400
3″	209,5	28,6	127,0	117,5	88,9	78,0	79,4	168,3	8	22,2	7,400
3 1/2″	228,6	30,2	139,7	133,3	101,6	90,2	81,0	184,1	8	22,2	8,900
4″	254,0	31,7	157,2	146,0	114,3	102,4	85,7	200,0	8	22,2	11,900
5″	279,4	34,9	185,7	177,8	141,2	128,3	98,4	234,9	8	22,2	16,000
6″	317,5	36,5	215,9	206,4	168,4	154,2	98,4	269,9	12	22,2	20,200
8″	381,0	41,3	269,9	260,3	219,1	202,7	111,1	330,2	12	25,4	31,000
10″	444,5	47,6	323,4	320,7	273,0	254,5	117,5	387,3	16	28,6	44,300
12″	520,7	50,8	381,0	374,6	323,8	304,8	130,2	450,8	16	31,7	64,000
14″	584,2	54,0	412,7	425,4	355,6	336,5	142,9	514,3	20	31,7	88,000
16″	647,7	57,1	469,9	482,6	406,4	387,3	146,0	571,5	20	34,9	113,000
18″	711,2	60,3	533,4	533,4	457,2	438,1	158,7	628,6	24	34,9	134,000
20″	774,7	63,5	584,2	587,4	508,0	488,9	161,9	685,8	24	34,9	171,000
22″	838,2	66,7	641,2	641,2	558,8	539,7	165,1	742,9	24	41,3	195,000
24″	914,4	69,8	692,1	701,7	609,6	590,5	168,3	812,8	24	41,3	238,000
*	The data “J” corresponds to the STD schedule

ASME B16.5 Weld Neck Flange Class 600 Dimensions

ANSI/ASME/ASA B16.5 600lb/sq.in. Flange WN-RF

ø	D	b	g	m	J	h	k	Holes	l	Kg.
1/2″	95,2	14,3	34,9	38,1	22,3	22,2	66,7	4	15,9	0,800
3/4″	117,5	15,9	42,9	47,6	27,7	25,4	82,5	4	19,0	1,400
1″	123,8	17,5	50,8	54,0	34,5	27,0	88,9	4	19,0	1,600
1 1/4″	133,3	20,6	63,5	63,5	43,2	28,6	98,4	4	19,0	2,100
1 1/2″	155,6	22,2	73,0	69,8	49,5	31,7	114,3	4	22,2	3,100
2″	165,1	25,4	92,1	84,1	62,0	36,5	127,0	8	19,0	3,700
2 1/2″	190,5	28,6	104,8	100,0	74,7	41,3	149,2	8	22,2	5,400
3″	209,5	31,7	127,0	117,5	90,7	46,0	168,3	8	22,2	7,300
3 1/2″	228,6	34,9	139,7	133,3	103,4	49,2	184,1	8	25,4	8,900
4″	273,0	38,1	157,2	152,4	116,1	54,0	215,9	8	25,4	11,800
5″	330,2	44,4	185,7	188,9	143,8	60,3	266,7	8	28,6	24,500
6″	355,6	47,6	215,9	222,2	170,7	66,7	292,1	12	28,6	29,500
8″	419,1	55,6	269,9	273,0	221,5	76,2	349,2	12	31,7	43,000
10″	508,0	63,5	323,8	342,8	276,3	85,7	431,8	16	34,9	70,000
12″	558,8	66,7	381,0	400,0	327,1	92,1	488,9	20	34,9	86,000
14″	603,2	69,8	412,7	431,8	359,1	93,7	527,0	20	38,1	100,000
16″	685,8	76,2	469,9	495,3	410,5	106,4	603,2	20	41,3	142,000
18″	742,9	82,5	533,4	546,1	461,8	117,5	654,0	20	44,4	175,000
20″	812,8	88,9	584,2	609,6	513,1	127,0	723,9	24	44,4	232,000
22″	869,9	95,2	641,2	666,7	564,4	133,3	777,9	24	47,6	292,000
24″	939,8	101,6	692,1	717,5	615,9	139,7	838,2	24	50,8	330,000

ANSI/ASME B16.47 Flanges	ANSI/ASME B16.36 Flanges	ANSI/ASME B16.5 Flanges	Pr. EN1902-1 Flanges
DIN Flanges	JIS Flanges	BS 4504 Flanges	BS 10 Flanges
MSS SP-44 Flanges	JIS B2220 Flanges	KS B1503 Flanges	UNI Flanges
SABS/SANS 1123 Flanges	AS 2129, AS 4087 Flanges	ISO 9624, ISO 7005-1 Flanges	AWWA Flanges Standard
GOST Standard Flanges	API Flanges	AS/ANZ 4331.1 Flanges	Series A Flange
Series B Flange	SAE J518 Flanges	GB Flange	Norwegian Standard Flanges

Contact Us

Our Location

Weld Neck Flange
